Pneumatic Strapping Tools

Changcheng’s pneumatic strapping tools powered by compressed air enable tensioning, welding and cutting at one time. The pneumatic strapping tools are used to seal overlapped parts of the straps in a way of friction weld. Under the drastic vibration between a vibrator and a bottom die, the overlapped parts will be melted and sealed.

The pneumatic strapping tools have different modes for various sizes of straps, including 16mm, 19mm, 25mm and 32mm with the tension force reaching between 4,500N (16mm) to 8,000N (32mm). The use of Changcheng’s pneumatic strapping tools ensures that the overlapped portion strength averages 80% of the original straps.

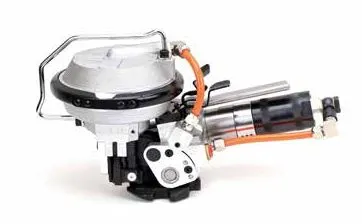

Pneumatic Powered Steel Strapping Tool, KZ-16/19

  • Pneumatic Powered Steel Strapping Tool, KZ-16/19
  • Color Sliver
    Strap material Steel
    Air pressure (MPa) 0.49-0.63
    Tensile stress (KN) ≥6.3
    Tension speed (m/min) 5.0
    Tension force (KN) ≥4.5
    Strap size (mm) (16-19)x(0.6-0.8)
    Weight (kg) 4.2

Pneumatic Powered Steel Strapping Tool, KZ-19B/25B/32B

  • Pneumatic Powered Steel Strapping Tool, KZ-19B/25B/32B
  • Color Sliver
    Strap material Steel
    Air pressure (MPa) 0.49-0.63
    (KN) ≥18.4
    Tension speed (m/min) 5.3
    Tension force (KN) ≥9.0
    Strap size (mm) (19-32)x(0.8-1.2)
    Weight (kg) 15

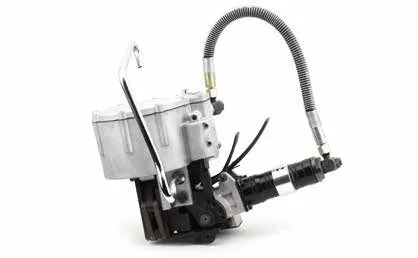

Pneumatic Split Strapping Tool for Steel Strapping, YTL-S19/S25/S32

  • Pneumatic Split Strapping Tool for Steel Strapping, YTL-S19/S25/S32 Pneumatic Split Strapping Tool for Steel Strapping, YTL-S19/S25/S32
  • Color Sliver
    Strap material steel strap, iron strap
    Strap width (mm) 19-32
    Strap thickness (mm) 0.6-1.2
    Tension force (KN) ≥8.5
    Tension speed (m/min) ≥7.5
    Tensile force(KN) 15
    Air pressure (MPa) 0.49-0.63
    Dimension (mm) L375xH260xW175
    Weight (kg) 4.1+3.1

Pneumatic PET Strapping Tool, MR19

  • Pneumatic PET Strapping Tool, MR19
  • Color Metallic grey
    Strap material PET
    Sealing method Friction welding
    Strap width (mm) 13-19
    Strap thickness (mm) 0.5-1.5
    Air pressure (MPa) 0.5-0.8
    Sealing time (s) 1-5 (adjustable)
    Dimension (mm) L240xH108xW135
    Weight (kg) 2.5

Pneumatic PET Strapping Tool for PP/PET Straps, R19

  • Pneumatic PET Strapping Tool for PP/PET Straps, R19
  • Color Metallic grey
    Strap material PP&PET
    Sealing method Friction welding
    Strap width (mm) 13-19
    Strap thickness (mm) 0.5-1.5
    Air pressure (MPa) 0.5-0.8
    Sealing time (s) 1-5 (adjustable)
    Dimension (mm) L240"H108"W135
    Weight (kg) 2.5

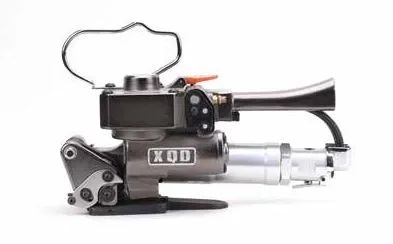

Pneumatic Plastic Strapping Tool, XQD-19/25

  • Pneumatic Plastic Strapping Tool, XQD-19/25
  • Color Alloy grey
    Strap material PP&PET
    Sealing method Friction welding
    Strap width (mm) 13-19/19-25
    Strap thickness (mm) 0.4-1.2/0.5-1.5
    Maximum tension force (N) 3500
    Air pressure (MPa) 0.5-0.8
    Sealing time (s) 1-5 (adjustable)
    Dimension (mm) L280"H160xW180
    Weight (kg) 3.82

Pneumatic Plastic Strapping Tool, AQD-19/25

  • Pneumatic Plastic Strapping Tool, AQD-19/25
  • Color Alloy grey
    Strap material PP&PET
    Sealing method Friction welding
    Strap width (mm) 13-19
    Strap thickness (mm) 0.5-1.5
    Maximum tension force (N) 3500
    Air pressure (MPa) 0.5-0.8
    Sealing time (s) 1-5 (adjustable)
    Dimension (mm) L280xH160xW180
    Weight (kg) 3.8

Pneumatic Plastic Strapping Tool, YQ-19/25

  • Pneumatic Plastic Strapping Tool, YQ-19/25
  • Color Metallic grey
    Strap material PP&PET
    Sealing method Friction welding
    Strap width (mm) 13-25
    Strap thickness (mm) 0.5-1.5
    Maximum tension force (N) 3500
    Air pressure (MPa) 0.5-0.8
    Sealing time (s) 1-5 (adjustable)
    Dimension (mm) L278.5xH149.5xW173
    Weight (kg) 3.8

Pneumatic Plastic Strapping Tool, YB-19/25

  • Pneumatic Plastic Strapping Tool, YB-19/25
  • Color Metallic grey
    Strap material PP&PET
    Sealing method Friction welding
    Strap width (mm) 13-25
    Strap thickness (mm) 0.5-1.5
    Maximum tension force (N) 3500
    Air pressure (MPa) 0.5-0.8
    Sealing time (s) 1-5 (adjustable)
    Dimension (mm) L300xH149.5xW173
    Weight (kg) 3.8

Pneumatic Plastic Strapping Tool, CA-19/25

  • Pneumatic Plastic Strapping Tool, CA-19/25
  • Color Metallic grey
    Strap material PP&PET
    Sealing method Friction welding
    Strap width (mm) 13-25
    Strap thickness (mm) 0.5-1.5
    Maximum tension force (N) 3500
    Air pressure (MPa) 0.5-0.8
    Sealing time (s) 1-5 (adjustable)
    Dimension (mm) L280xH160xW180
    Weight (kg) 3.8
Tags
  • polyester strapping belt
  • plastic packing band
  • PET strapping coils

Contact Our Specialists

To learn more about our products and services, please fill out the form on the right with your request. Our specialists will contact you promptly to answer your questions and assist you with your packaging needs.

  • Email
  • Phone
Get in Touch

Are you looking for durable and reliable strapping? Changcheng is a trustworthy plastic strapping company offering both polypropylene strapping and polyester strapping, ensuring there is an appropriate solution that meets your strapping needs. In order to facilitate your strapping operations, particularly when you need to transport heavy goods or fragile items, we provide a selection of strapping tools and automatic packaging machines as well as strapping accessories to package your products with minimal effort, while delivering superior protection. With 20 years of experience in the industry, we have a solid understanding of plastic strapping and can provide sophisticated strapping solutions to meet your specific packaging needs.

Related Strapping Products & Tools

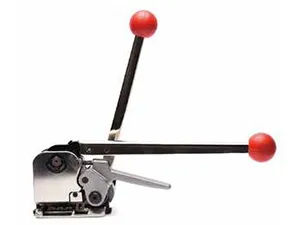

  • Manual Combination Strapping Tools
    Manual Combination Strapping Tools
  • Carton Erecting Machines
    Carton Erecting Machines
  • Labeling Machines
    Labeling Machines
  • Carton Sealing Machines
    Carton Sealing Machines

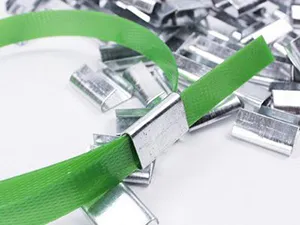

  • Strapping Consumables
