PET Strapping

Polyester strapping band

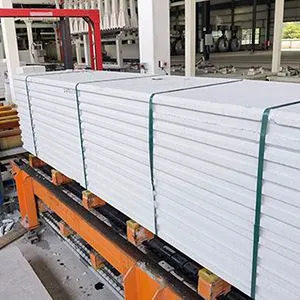

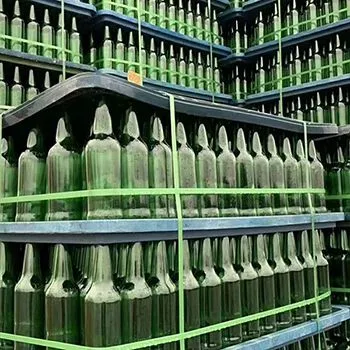

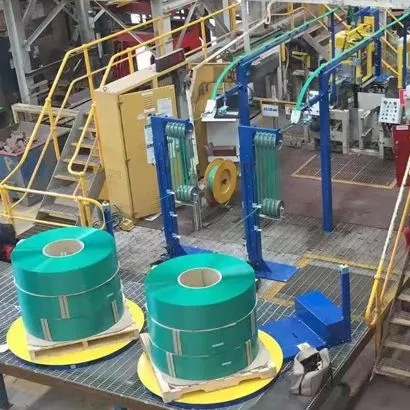

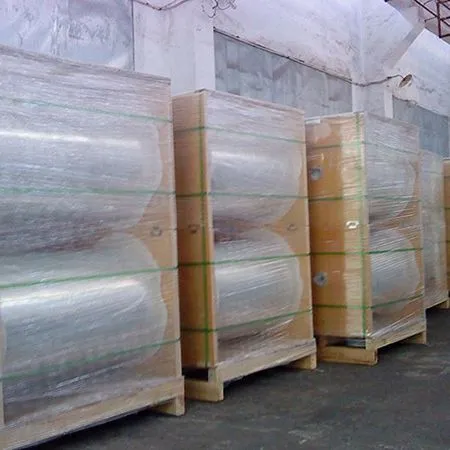

PET strapping band, or polyester strapping, is a common type of plastic strapping bands. It is widely used to bundle heavy products to form a stable palletized unit. PET strapping band is strong and resilient (for safety), straight (for smooth running of the automatic machines), and split resistant (for high strength). Whether the surface is smooth or embossed, PET strap can be used in automatic strapping machines that are responsible for feeding, tensioning and sealing.

Request a Quote
PET Strapping

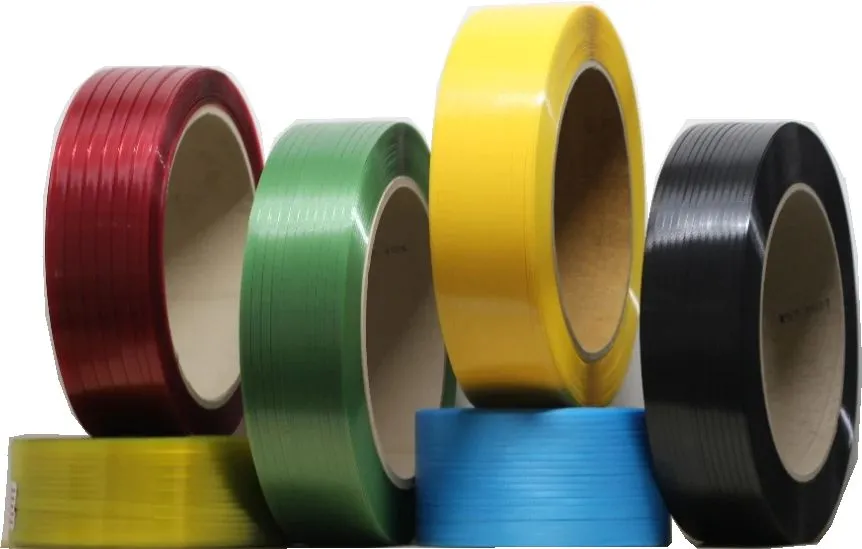

Changcheng manufactures PET strapping band that ranges from 5mm to 32mm in width and 0.5mm to 1.4mm in thickness. The PET strapping band that we produce is totally recyclable since it is made of PET bottle flakes and PET chips. It can be recycled and transformed into polyester fiber.

The strap breaking strength is up to 1,500 kgf to cover common industrial packaging needs.

The strap breaking strength is up to 1,500 kgf to cover common industrial packaging needs.
Specifications

Notes: other specs. /weights are available upon request.

Model Width mm (inch) Thickness mm (inch) Smooth/emboss Breaking strength kgf Weight/coil kgs Color
0907 9 (0.35) 0.7 (027) S/E 226 18/20 Green/Black
1107 11 (0.43) 0.7 (027) S/E 277 20 Green/Black
1207 12 (1/2) 0.7 (027) S/E 302 20 Green/Black
1208 12 (1/2) 0.8 (031) S/E 345 20 Green/Black
15075 15 (3/5) 0.75 (029) S/E 405 20/70/120/330 Green/Black
15085 15 (3/5) 0.85 (033) S/E 510 20/70/120/330 Green/Black
1608 16 (5/8) 0.8 (031) S/E 460 20/70/120/330 Green/Black
1609 16 (5/8) 0.9 (035) S/E 590 20/70/120/330 Green/Black
1610 16 (5/8) 1.0 (040) S/E 672 20/70/120/330 Green/Black
1908 19 (3/4) 0.8 (031) S/E 638 20/70/120/330 Green/Black
1910 19 (3/4) 1.0 (040) S/E 798 20/70/120/330 Green/Black
19127 19 (3/4) 1.27 (050) S 1013 20/70/120/330 Green/Black
2512 25 (1) 1.2 (047) S 1150 20/70/120/330 Green/Black
3210 32 (1 1/4) 1.0 (040) S 1250 20/70/120/330 Green/Black
3212 32 (1 1/4) 1.2 (047) S 1500 20/70/120/330 Green/Black
PET Strapping Band Packaging
PET Strapping band packing ways

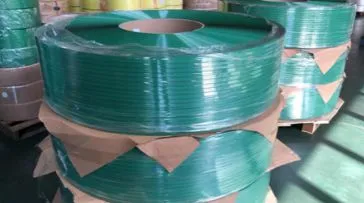

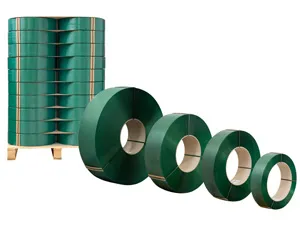

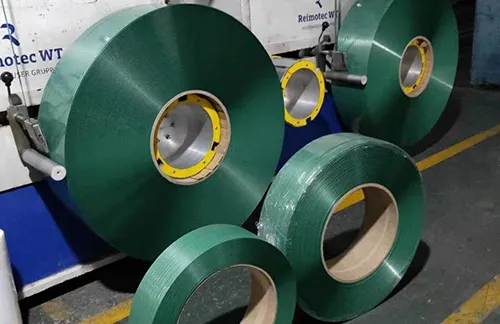

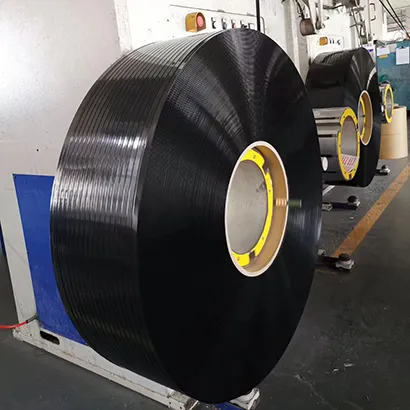

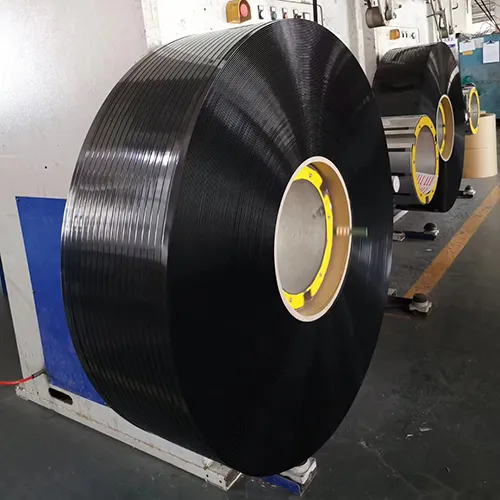

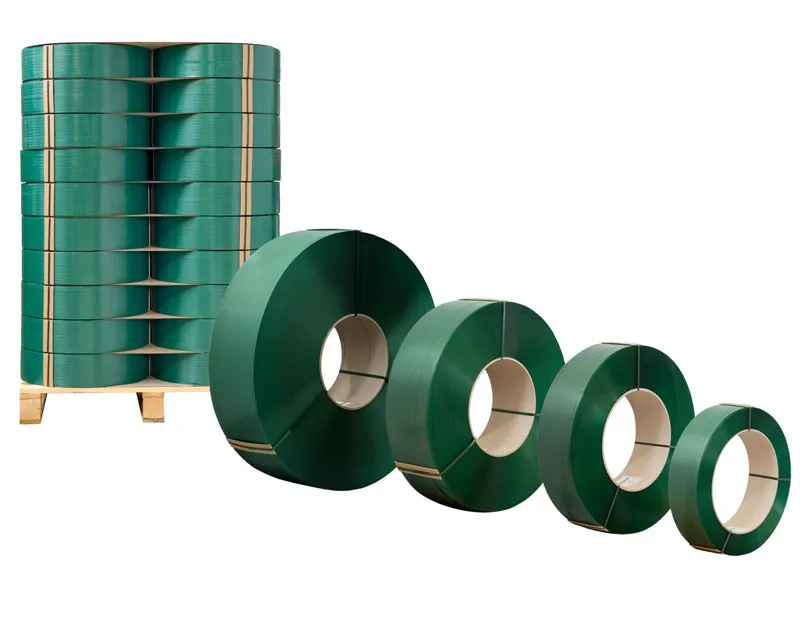

PET strapping band is usually wound around a paper core or a film to form a strap coil. We produce several sizes of strap coils, including standard coils (18.5 kg to 22 kg), jumbo coils (65 kg, 70 kg to 75 kg, or 120 kg to 150 kg) and super jumbo coils (330 kg to 350 kg). We also produce pre-cut PET strapping band to meet special packaging requirements. For example, handheld pneumatic welding tools are usually used along with pre-cut PET strapping band to tie bales.

Recommended numbers of strapping rolls for stacking
  • Standard coils, 28/32 coils per skid

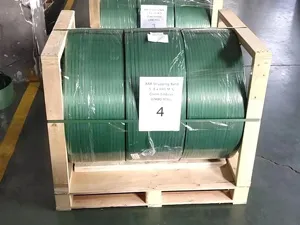

  • Jumbo coils (65 kg to 150 kg), 3-6 coils per skid
  • Super jumbo coils (330 kg to 350 kg), 3 coils per skid
  • We also provide different ways of packaging strap rolls upon requests.
  • Standard Rolls Stacking & Palletizing Standard Rolls Stacking & Palletizing

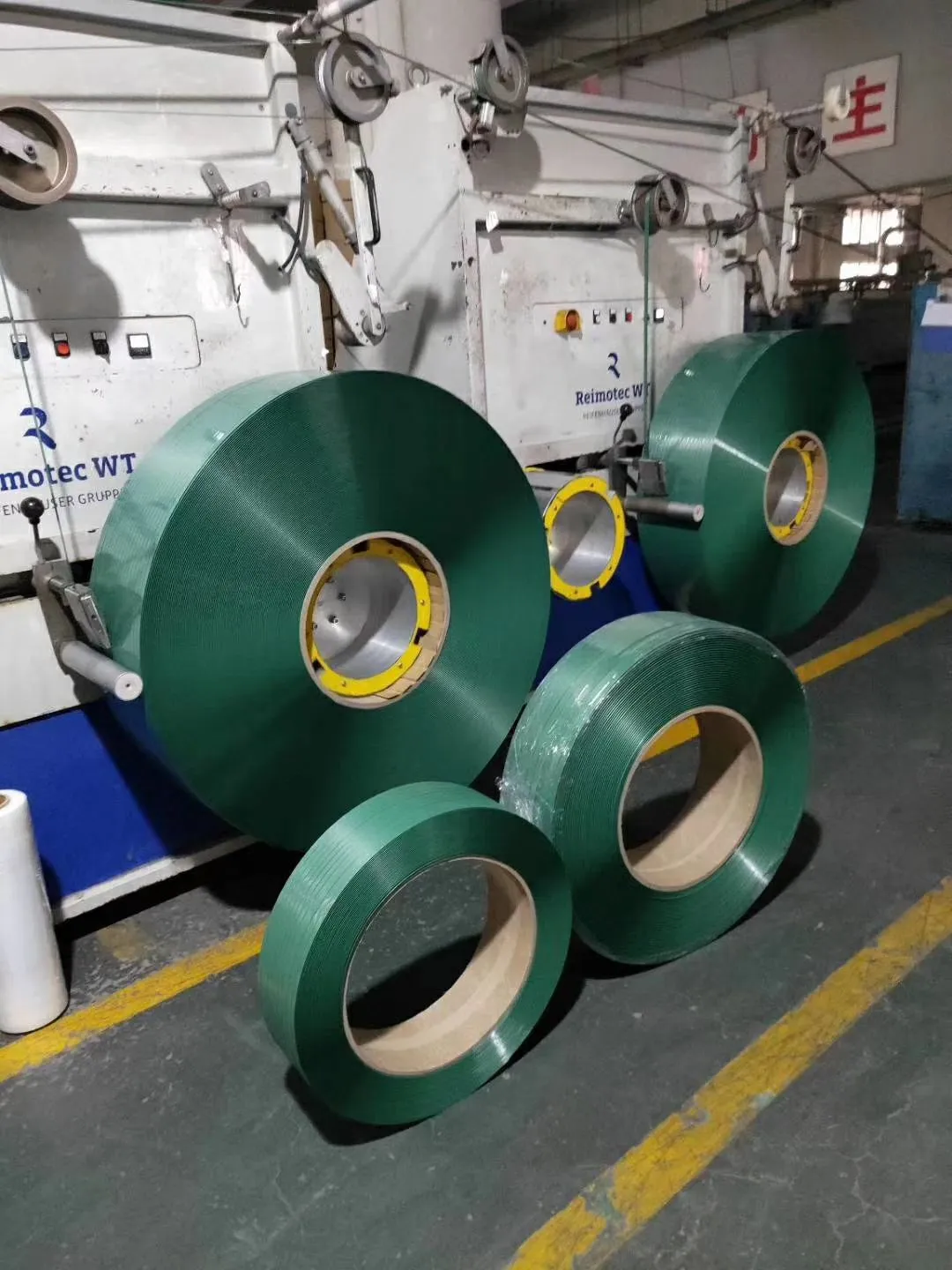

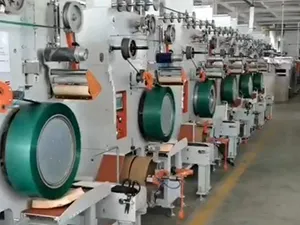

  • strapping roll manufacturing
    Video on standard roll manufacturing
  • Strapping Rolls Stacking & Palletizing 65-75 KGS Rolls Stacking & Palletizing

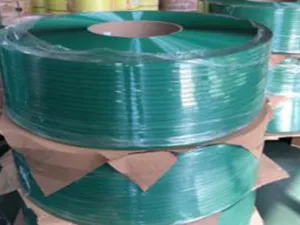

  • Plastic Strapping Rolls Stacking & Palletizing 120-150 KGS Rolls Stacking & Palletizing

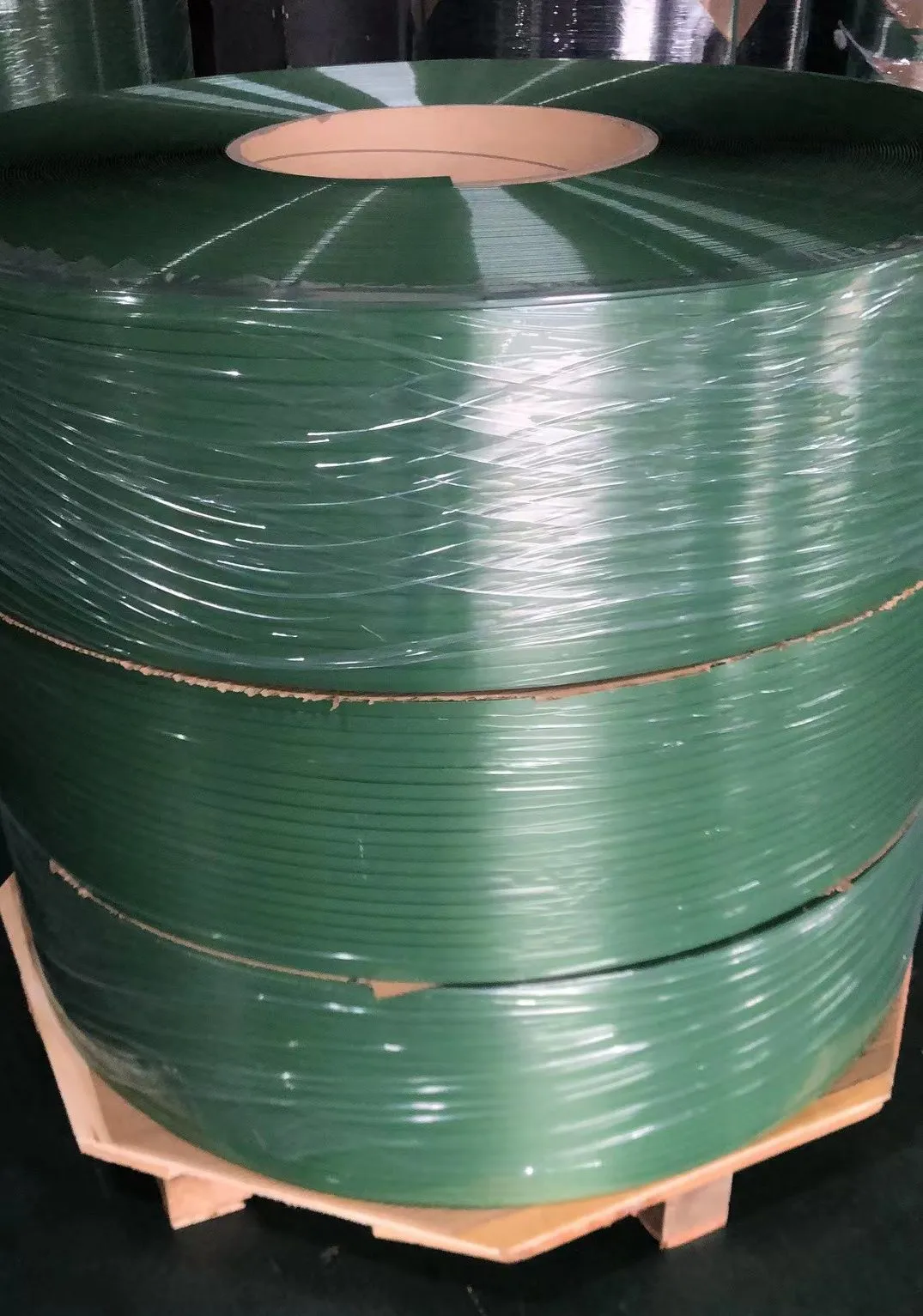

  • Plastic Strapping Rolls Stacking & Palletizing 330-350 KGS Rolls Stacking & Palletizing
Loading capacity of 20-foot containers and 40-foot containers

The loading capacity of 20-foot containers is 12 tons of strapping and that of 40-foot containers is 26 tons of strapping according to the common limitations of destination ports and inland roads. We will confirm relevant weight limitations with clients before shipping.

Some loading pictures for your reference

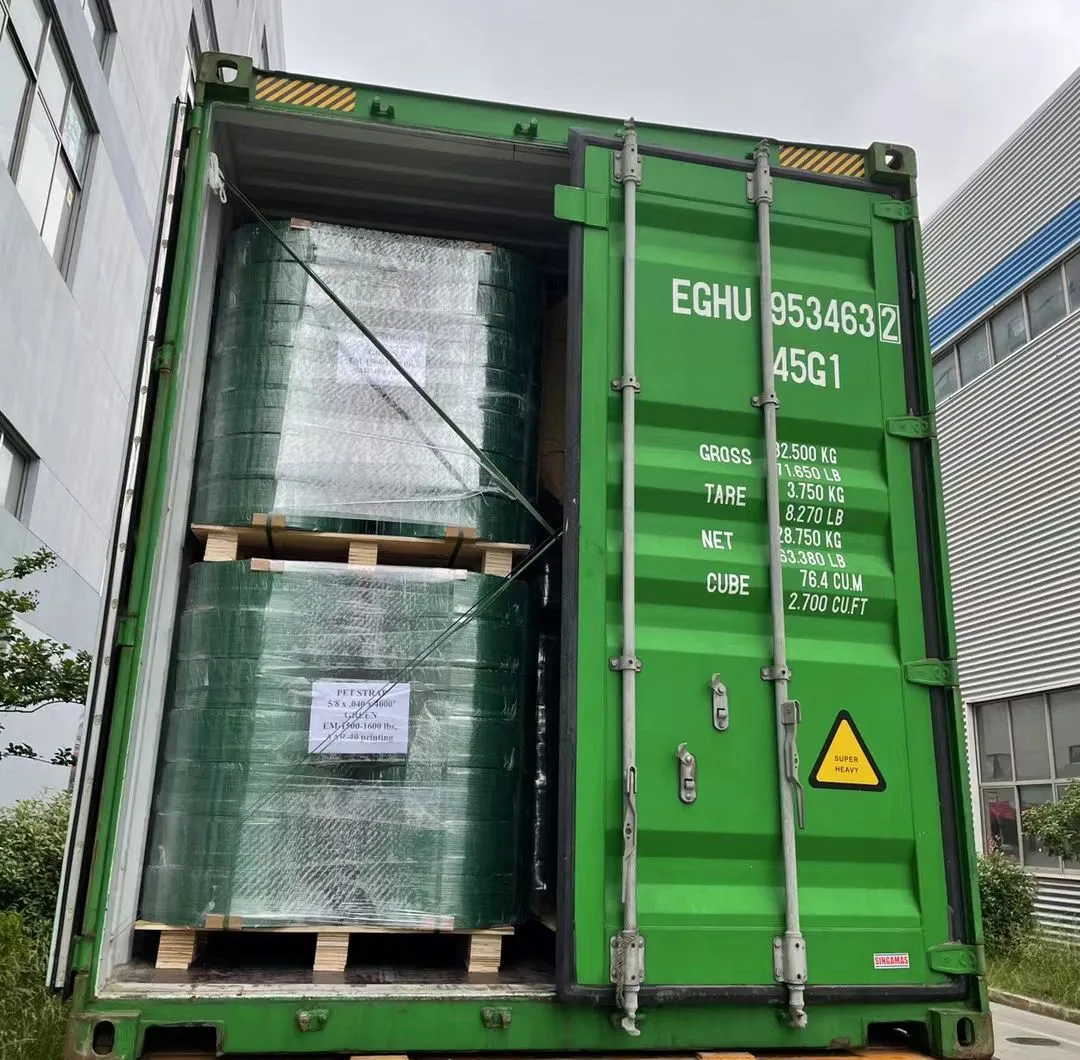

  • Standard Rolls Container Loading Standard Rolls Container Loading

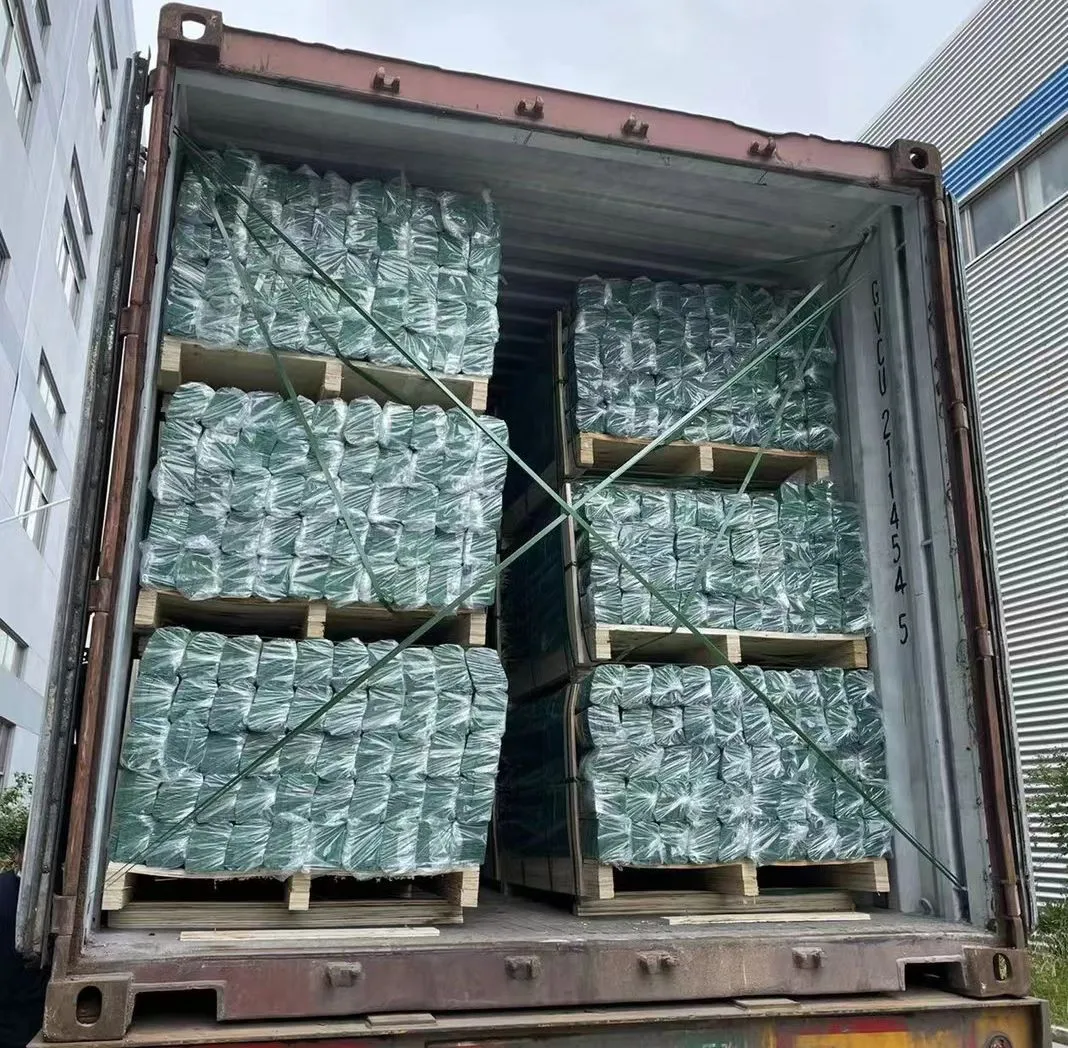

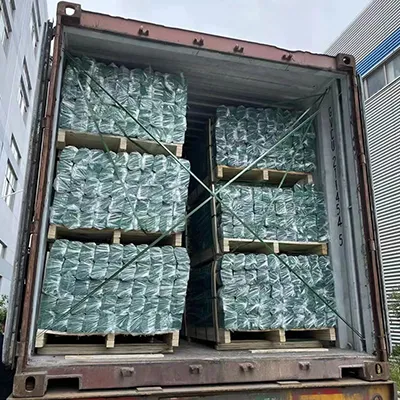

  • Pre-cut Strapping Container Loading Pre-cut Strapping Container Loading

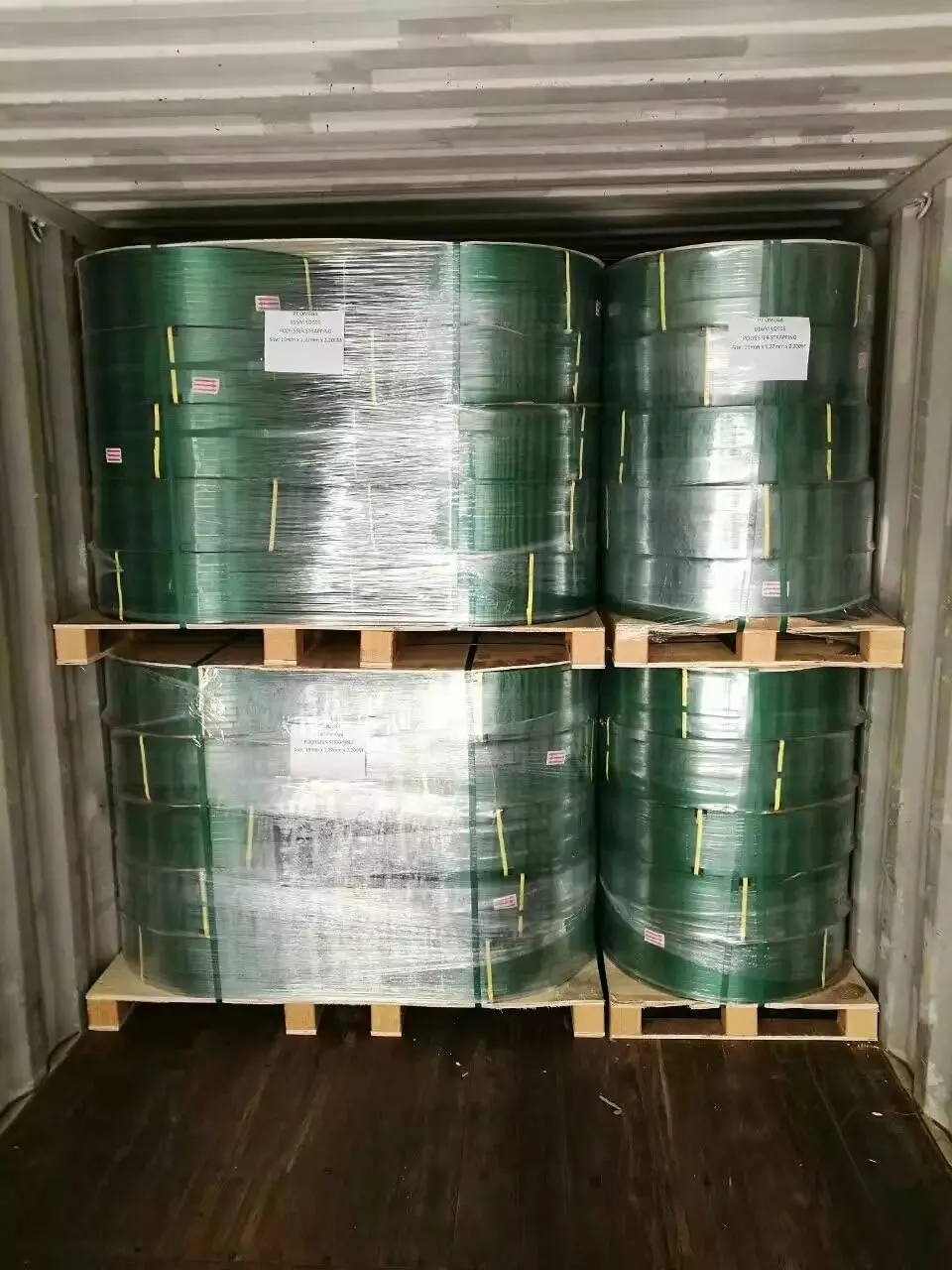

  • 75 KGS Rolls Container Loading 75 KGS Rolls Container Loading
  • Why do more and more clients prefer jumbo strap coils?

    Why do more and more clients prefer jumbo strap coils?

    Less time to replace strapping coils and increase productivity;
    Reduced wastage of strapping;
    Better quality in straightness.

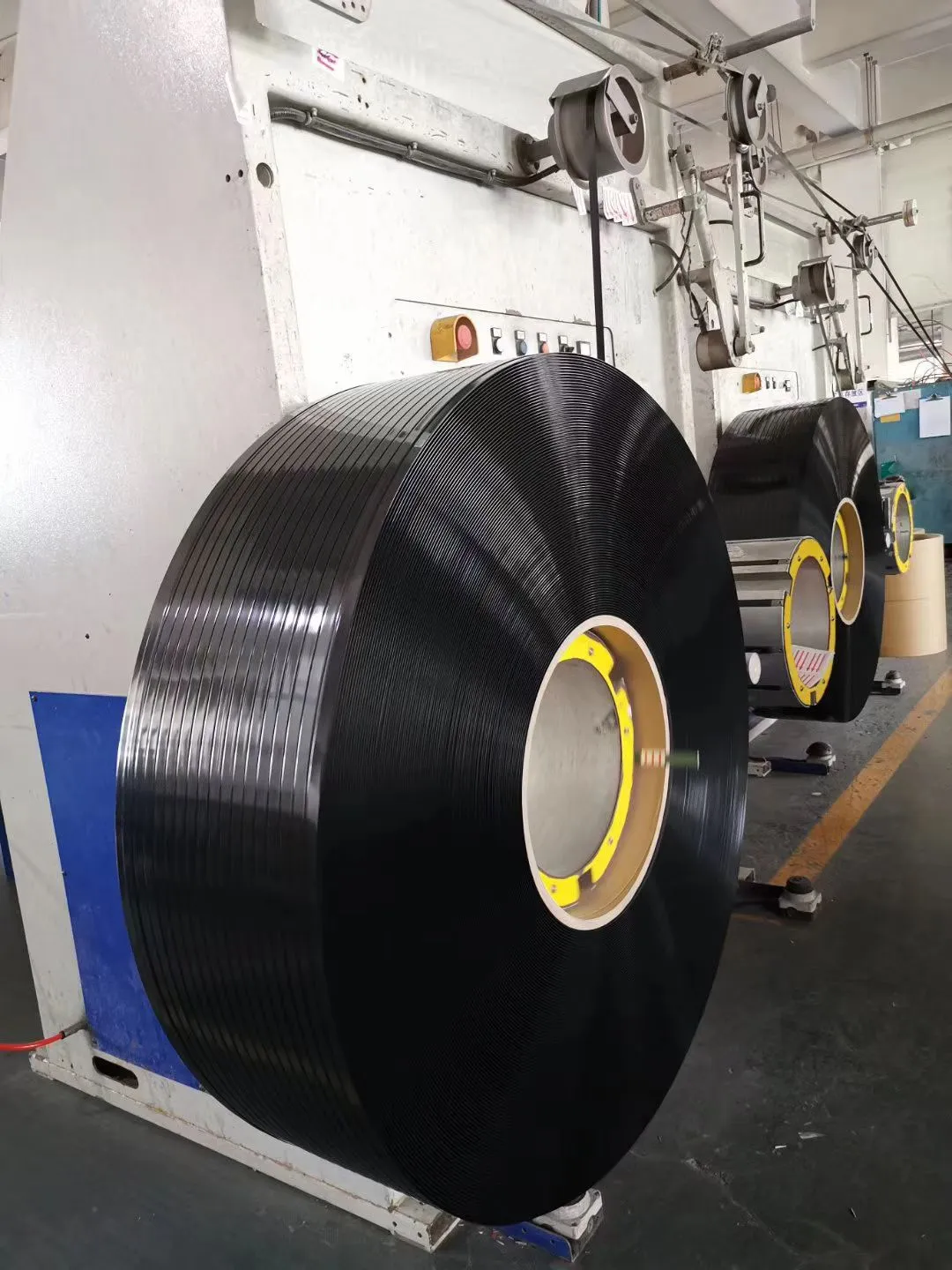

  • What advantages do we have in producing jumbo rolls?

    What advantages do we have in producing jumbo rolls?

    Automatic non-stop screen changers made in German;
    Advanced raw material processing technology;
    Experienced production team;
    One of the earliest manufacturers in China to research and develop jumbo roll production
