Stretch Wrapping Machines

Changcheng’s stretch wrapping machines are designed to prevent products against rain, dust, moisture and dirt during transportation. They are widely used for strapping and packaging in the sections of product export, food & beverage, plastics, glasswork, ceramics and electromechanical components.

Highlights
  • Stable structure;
  • Digital control loops;
  • Slow start and stop of the turntable
  • Touch screen
  • Adjustable numbers of films

These highlights make Changcheng’s stretch wrapping machines a type of reliable, stable, operator-friendly wrapping machines that feature long service life, ease of use and reduced failure rate.

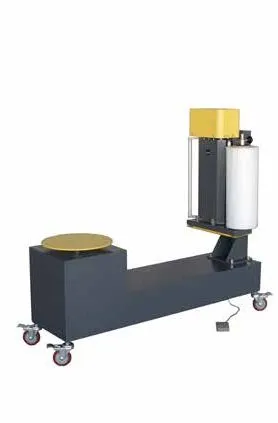

Carton Box Stretch Wrapping Machine

  • Carton Box Stretch Wrapping Machine
  • Power supply 1P AC220V 50Hz
    Air pressure (MPa) 0.4-0.6
    Turntable speed (rpm) 0-20
    Turntable diameter (mm) Ø400, Ø600
    Air cylinder stroke (mm) 500
    Max load weight (kg) 60
    Packaging material (mm) W ≤500, outer dia. ≤Ø280 LLDPE stretch film
    Noise ≤75dB (A)
    Environment Humidity ≤90%, temperature -10 - 40℃

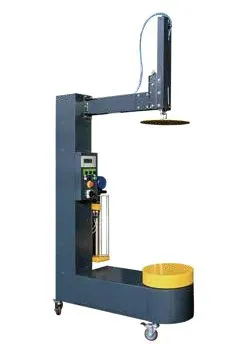

Carton Box Stretch Wrapping Machine, MH-FG-810B

  • Carton Box Stretch Wrapping Machine, MH-FG-810B
  • Power supply 1P AC220V 50Hz
    Air pressure (MPa) 0.4-0.6
    Turntable speed (rpm) 0-20
    Turntable diameter (mm) Ø400, Ø600
    Air cylinder stroke (mm) 500
    Max load weight (kg) 60
    Packaging material (mm) W≤500; outer dia.≤Ø280; LLDPE stretch film
    Noise ≤75dB (A)
    Environment Humidity ≤90%, temperature -10 - 40℃

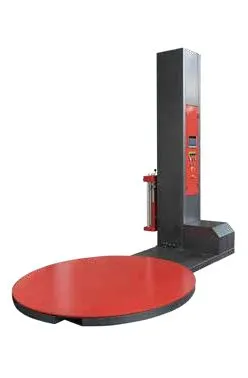

Automatic Pallet Stretch Wrapper, MH-FG-2000A

  • Automatic Pallet Stretch Wrapper, MH-FG-2000A
  • Power 1P AC 220V/110V 50/60Hz 1.0kW
    Turntable speed (rpm) 0-9 (Optional 6/12)
    Turntable diameter (mm) Ø1,500 (Optional Ø1650/1800/2000/2200)
    Mast height 2400 (optional Ø2000/2700/3000/3200/3400)
    Effective height (mm) Mast height minus 400
    Packaging material (mm) W≤500, outer dia.≤Ø280, LLDPE stretch film
    Machine dimension (mm) L2650xW1650xH2471

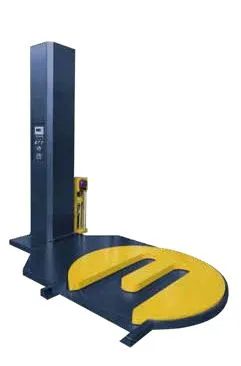

Automatic Pallet Stretch Wrapper with Horseshoe Turntable, MH-FG-2000W

  • Automatic Pallet Stretch Wrapper with Horseshoe Turntable, MH-FG-2000W
  • Power supply 1P AC220V 50Hz
    Turntable speed (rpm) 0-10
    Turntable diameter (mm) Ø1500 (Optional Ø1650)
    Forklift fork width (mm) ≤600
    Loading direction 180°
    Maximum load weight (kg) 1000
    Mast height (mm) 2400 (optional 2000/2700/3000/3200/3400)
    Effective height (mm) Mast height minus 400
    Packaging material (mm) W≤500, outer dia.≤Ø280, LLDPE stretch film
    Working height (mm) 500 - mast height minus 400

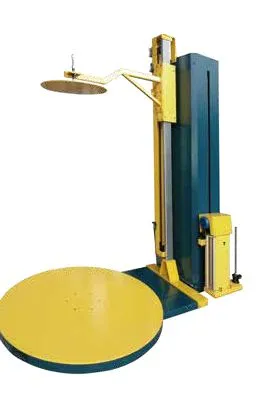

Automatic Top Press Pallet Wrapper, MH-FG-2000C1

  • Automatic Top Press Pallet Wrapper, MH-FG-2000C1
  • Power supply 1P AC220V 50Hz
    Turntable speed (rpm) 0-10
    Turntable diameter (mm) Ø1500 (optional Ø1650/1800/2000/2200)
    Top press plate dia. (mm) Ø450 (optional Ø600/800)
    Mast height (mm ) 2400 (optional 2000/2700/3000/3200/3400)
    Maximum Load Weight (kg) 2000
    Effective height (mm) Mast height minus 400
    Packaging material (mm) W≤500, outer dia.≤Ø280 LLDPE stretch film
    Working height (mm) 500 - mast height minus 400

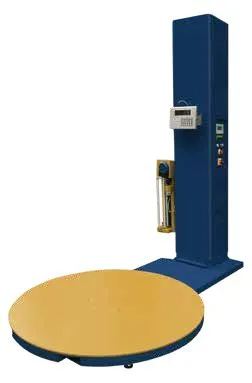

Pallet Stretch Wrapper with Weighing System, MH-FG-2000P

  • Pallet Stretch Wrapper with Weighing System, MH-FG-2000P
  • Power supply 1P AC220V 50Hz
    Turntable speed (rpm) 0-10
    Turntable diameter (mm) Ø1500 (optional Ø1650/Ø1800)
    Mast height (mm) 2400 (optional 2000/2700/3000/3200/3400)
    Packaging material (mm) W≤500; outer dia. ≤Ø280; LLDPE stretch film
    Maximum Load Weight (kg) 2000
    Effective height (mm) Mast height minus 400
    Scale accuracy (g) 100

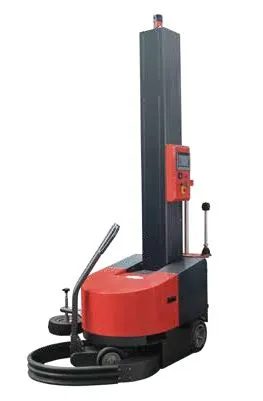

Self-propelled Pallet Wrapping Machine, MH-CTP-600

  • Self-propelled Pallet Wrapping Machine, MH-CTP-600
  • Power supply 1P AC220V/110V 50/60Hz
    Operating power DC 24V
    Battery capacity (Ah) 80
    Pallet per battery charge 200 pcs (charge time: 7 hours)
    Drive speed (m/min) 90
    Pallet size (mm) 600x(600-∞)
    Max wrapping height (mm) 2400 (option 2800)
    Film material (mm) LLDPE stretch film, W≤500, out diameter≤250

Are you looking for durable and reliable strapping? Changcheng is a trustworthy plastic strapping company offering both polypropylene strapping and polyester strapping, ensuring there is an appropriate solution that meets your strapping needs. In order to facilitate your strapping operations, particularly when you need to transport heavy goods or fragile items, we provide a selection of strapping tools and automatic packaging machines as well as strapping accessories to package your products with minimal effort, while delivering superior protection. With 20 years of experience in the industry, we have a solid understanding of plastic strapping and can provide sophisticated strapping solutions to meet your specific packaging needs.
