Automatic Strapping Machines

Changcheng provides various types of automatic strapping machines and each of them is particularly designed for regular-size packaging, large and heavy products, powder and liquid products, products that are quite wide or compression packaging. Automatic strapping machines are mainly used in packaging of cartons, paper parcels and wooden cases in fields of food, medical and hardware industries.

Highlights
  • Fully automatic strapping machines require no manual feeding, which saves the labor and improves productivity;
  • High tensioning force results in outstanding packaging output;
  • Quality parts processed by NCN systems ensure safety, stability and durability;
  • Gentle strapping performance eliminates damages to products;
  • Reliable motors that stop running after packaging reduce operation costs.

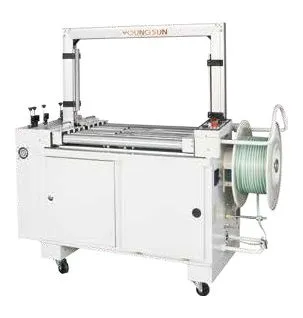

Automatic Arch Strapper, MH-101A

  • Automatic Arch Strapper, MH-101A
  • Power supply 380V 50/60Hz 1.0kW
    Machine dimension (mm) 1400x628x1418
    Strapping specifications (mm) Minimum packing size: W100xH80 Standard frame size: W800xH600 (customized)
    Table height (mm) 750 (customized)
    Strapping speed (sec/cycle) ≤2.5
    PP strap (mm) Width 9-15(±1); thickness 0.55-1.0(±0.1)

Automatic Arch Strapper with Roller Driven Table, MH-102A

  • Automatic Arch Strapper with Roller Driven Table, MH-102A
  • Power supply 380V 50/60Hz 1.4kW
    Machine dimension (mm) 1580x650x1418
    Strapping specifications (mm) Minimum packing size: W100xH80 Standard frame size: W800xH600 (customized)
    Table height (mm) 450 (customized)
    Strapping speed (sec/cycle) ≤2.5
    PP strap (mm) Width 9-15(±1), thickness 0.55-1.0(±0.1)

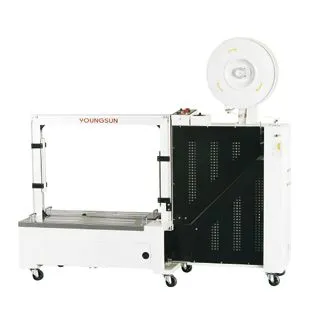

Automatic Low Table Strapper, MH-101B

  • Automatic Low Table Strapper, MH-101B
  • Power supply 380V 50/60Hz 1.0kW
    Machine dimension (mm) 1905x628x1850
    Strapping specifications (mm) Minimum packing size: W210xH100 Standard frame size: W800xH600 (customized)
    Table height (mm) 750 (customized)
    Strapping speed (sec/cycle) ≤2.5
    PP strap (mm) Width 9-15(±1), thickness 0.55-1.0(±0.1)

Automatic Low Table Strapper, MH-102B

  • Automatic Low Table Strapper, MH-102B
  • Power supply 380V 50/60Hz 1.4kW
    Machine dimension (mm) 1905x628x1850
    Strapping specifications (mm) Minimum packing size: W100xH80 Standard frame size: W800xH600 (customized)
    Table height (mm) 450 (customized)
    Strapping speed (sec/cycle) ≤2.5
    PP strap (mm) Width 9-15(±1), thickness 0.55-1.0(±0.1)

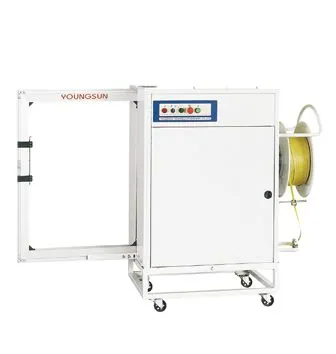

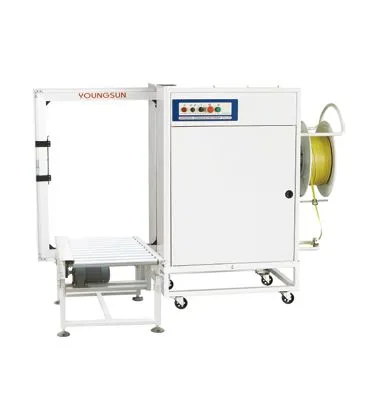

Side-Seal Automatic Strapping Machine, MH-103A

  • Side-Seal Automatic Strapping Machine, MH-103A
  • Power supply 380V 50/60Hz 1.0kW
    Machine dimension (mm) 1860x628x1350
    Strapping specifications (mm) Minimum packing size: W80xH100 Standard frame size: W600xH800 (customized)
    Table height (mm) Customized
    Strapping speed (sec/cycle) ≤2.5
    PP strap (mm) Width 9-15(±1), thickness 0.55-1.0(±0.1)

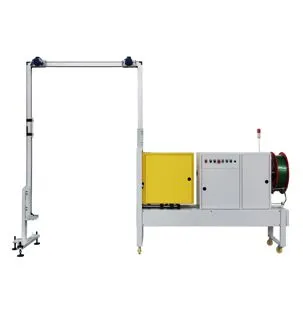

Automatic Horizontal Strapping Machine, MH-105A

  • Automatic Horizontal Strapping Machine, MH-105A
  • Power supply 380V 50/60Hz 3.1kW
    Air pressure (MPa) 0.4-0.6
    Machine dimension (mm) 1930x3240x2800
    Frame size (mm) W1500xH1500 (customized)
    Strapping speed (sec/cycle) ≤15
    PP strap (mm) Width 9-15(±1), thickness 0.55-1.0(±0.1)
    Strap coil dimension (mm) Width 160-180; inner dia. 200-210; outer dia. 400-500

Automatic Strapping Machine with Low Table, MH-103B

  • Automatic Strapping Machine with Low Table, MH-103B
  • Power supply 380V 50/60Hz 1.0kW
    Machine dimension (mm) 1860x628x1350
    Strapping specifications (mm) Minimum packing size: W80xH100 Standard frame size: W600xH800 (customized)
    Table height (mm) Customized
    Strapping speed (sec/cycle) ≤2.5
    PP strap (mm) Width 9-15(±1), thickness 0.55-1.0(±0.1)

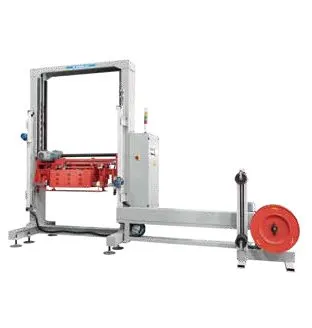

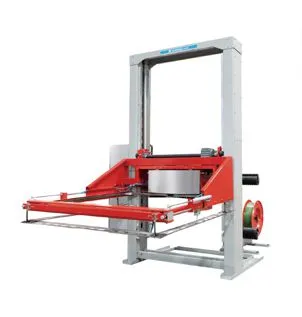

Automatic Vertical Pallet Strapping Machine, MH-105B

  • Automatic Vertical Pallet Strapping Machine, MH-105B
  • Power supply 380V, 50/60Hz, 1.6kW
    Air pressure (MPa) 0.4-0.6
    Machine dimension (mm) 4145x845x2630
    Frame size (mm) W1500xH2000 (customized)
    Strapping speed (sec/cycle) ≤15
    PP strap (mm) Width 9-15(±0.1), thickness 0.55-1.0 (±0.1)
    Strap coil dimension (mm) Width 160-180; inner dia. 200-210; outer dia. 400-500

Automatic Vertical Strapping Machine with Top Press, MH-105C

  • Automatic Vertical Strapping Machine with Top Press, MH-105C
  • Power supply 380V 50/60Hz 4.0kW
    Machine dimension (mm) 4250x800x3300
    Frame size (mm) W1500xH1800 (customized)
    Strapping speed (sec/cycle) ≤15
    PP strap (mm) Width 9-15(±0.1), thickness 0.55-1.0 (±0.1)
    Strap coil dimension (mm) Width 160-180, inner dia. 200-210, outer dia. 400-500

Automatic Low Table Arch Strapper, MH-X201B

  • Automatic Low Table Arch Strapper, MH-X201B
  • Power supply 220V 50/60Hz 0.4kW
    Machine dimension (mm) 1400x628x1435
    Strapping Specifications (mm) Minimum packing size: W80xH60 Standard frame size: W800xH600 (customized)
    Table height (mm) 750 (customized)
    Strapping speed (sec/cycle) ≤2.5
    PP strap (mm) Width 9-15(±1), thickness 0.55-1.0(±0.1)

Automatic Arch Strapping Machine, MH-X201

  • Automatic Arch Strapping Machine, MH-X201
  • Power supply 220V(380V); 50/60Hz; 0.4kW(0.8kW)
    Machine dimension (mm) 1400x628x1435
    Strapping Specifications (mm) Minimum packing size: W80xH60 Standard frame size: W800xH600 (customized)
    Table height (mm) 750 (customized)
    Strapping speed (sec/cycle) ≤2.5
    PP strap Width 9-15(±1), thickness 0.55-1.0(±0.1)

Automatic Arch Strapping Machine, MH-301A

  • Automatic Arch Strapping Machine, MH-301A
  • Power supply 220V 50/60Hz 0.5kW
    Machine dimension (mm) 1400x628x1435
    Strapping specifications (mm) Minimum packing size: W80xH60 Standard frame size: W800xH600 (customized)
    Table height (mm) 750 (customized)
    Strapping speed (sec/cycle) ≤2.5
    PP strap (mm) Width 9-15(±1), thickness 0.55-1.0(±0.1)

Automatic Arch Strapper with Low Table, MH-301B

  • Automatic Arch Strapper with Low Table, MH-301B
  • Power supply 220V 50/60Hz 0.5kW
    Machine dimension (mm) 1810x628x1617
    Strapping specifications (mm) Minimum packing size: W80xH60 Standard frame size: W800xH600 (customized)
    Table height (mm) 450 (customized)
    Strapping speed (sec/cycle) ≤2.0
    PP strap Width 9-15(±1), thickness 0.55-1.0(±0.1)

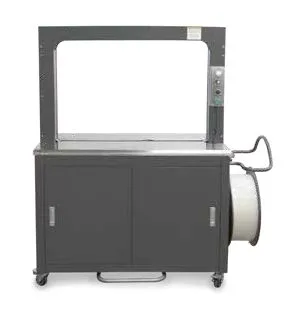

Automatic Strapping Machine, YS-309

  • Automatic Strapping Machine, YS-309
  • Power supply 220V; 50/60Hz; 0.6kW
    Machine dimension (mm) 1180x585x1450
    Strapping specifications (mm) Minimum packing size: W80xH60 Standard frame size: W650xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤40
    PP strap (mm) Width 8/9, thickness 0.5-0.8

Automatic Strapping Machine, YS-305

  • Automatic Strapping Machine, YS-305
  • Power supply 220V 50/60Hz 0.6kW
    Machine dimension (mm) 1180x585x1450
    Strapping specifications (mm) Minimum packing size: W80xH60 Standard frame size: W650xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤50
    PP strap (mm) Width 5/6, thickness 0.5-0.8, inner dia.200-210

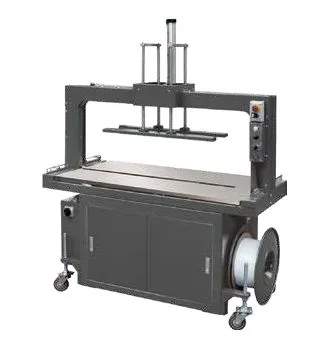

Automatic Strapping Machine with Press, YS-305P

  • Automatic Strapping Machine with Press, YS-305P
  • Power supply 220V 50/60Hz 0.6kW
    Air pressure (MPa) 0.4-0.6
    Machine dimension (mm) 1510x585x1970
    Strapping specifications (mm) Minimum packing size: W80xH60 Standard frame size: W1250xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤25
    PP strap (mm) Width 5/6, thickness 0.5-0.8

Automatic Strapping Machine, YS-312

  • Automatic Strapping Machine, YS-312
  • Power supply 220V 50/60Hz 0.6kW
    Machine dimension (mm) 1170x585x1420
    Strapping specifications (mm) Minimum packing size: W80xH60 Standard frame size: W650xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤40
    PP strap (mm) Width 11/12, thickness 0.5-0.8

Automatic Strapping Machine with Belt Driven Table, YS-305B

  • Automatic Strapping Machine with Belt Driven Table, YS-305B
  • Power supply 220V 50/60Hz 1.0kW
    Machine dimension (mm) L1480×W730×H1480
    Strapping Specifications (mm) Minimum packing size: W150xH60
    Standard frame size: W650xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤40
    PP strap (mm) Width 5/6, thickness 0.5-0.8

Automatic Arch Strapping Machine, YS-312X

  • Automatic Arch Strapping Machine, YS-312X
  • Power supply 220V 50/60Hz 0.6kW
    Machine dimension (mm) 1170x585x1420
    Strapping specifications (mm) Minimum packing size: W80xH60 Standard frame size: W650xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤40
    PP strap (mm) Width 11/12, thickness 0.5-0.8

Automatic Arch Strapper with Belt Driven Table & Press, YS-305BP

  • Automatic Arch Strapper with Belt Driven Table & Press, YS-305BP
  • Power supply 220V 50/60Hz 1.0kW
    Air pressure (MPa) 0.4-0.6
    Machine dimension (mm) 1480x730x1980
    Strapping specifications (mm) Minimum packing size: W150xH60 Standard frame size: W650xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤30
    PP strap (mm) Width 5/6, thickness 0.5-0.8

Automatic Arch Strapper with Roller Driven Table, YS-305R

  • Automatic Arch Strapper with Roller Driven Table, YS-305R
  • Power supply 220V 50/60Hz 1.0kW
    Machine dimension (mm) 1520x680x1500
    Strapping specifications (mm) Minimum packing size: W200xH60 Standard frame size: W1250xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤30
    PP strap (mm) Width 5/6, thickness 0.5-0.8

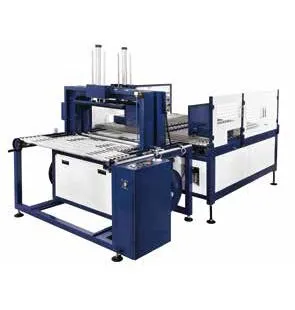

Automatic Arch Strapper with Roller Driven Table & Press, YS-305RPD

  • Automatic Arch Strapper with Roller Driven Table & Press, YS-305RPD
  • Power supply 220V 50/60Hz 2.4kW
    Air pressure (MPa) 0.4-0.6
    Machine dimension (mm) 2120x1300x2100
    Strapping specifications (mm) Minimum packing size: W400xH60 Standard frame size: W1250xH500 (customized)
    Table height (mm) 920 (customized)
    Strapping speed (sec/cycle) 16
    PP strap (mm) Width 5/6, thickness 0.5-0.8

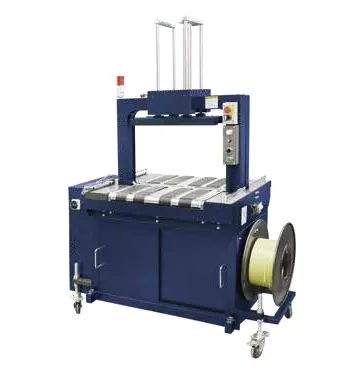

Automatic Arch Strapper with Roller Driven Table & Press, YS-305RP

  • Automatic Arch Strapper with Roller Driven Table & Press, YS-305RP
  • Power supply 220V 50/60Hz 1.0kW
    Air pressure (MPa) 0.4-0.6
    Machine dimension (mm) 1520x680x2000
    Strapping specifications (mm) Minimum packing size: W200xH60 Standard frame size: W1250xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤25
    PP strap (mm) Width 5/6, thickness 0.5-0.8

Automatic Strapping Machine, YS-405

  • Automatic Strapping Machine, YS-405
  • Power supply 220V 50/60Hz 0.6kW
    Machine dimension (mm) 1180x585x1450
    Strapping specifications (mm) Minimum packing size: W80xH60 Standard frame size: W650xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤60
    PP strap (mm) Width 5/6, thickness 0.5-0.8

Automatic Strapping Machine with Belt Driven Table, YS-405B

  • Automatic Strapping Machine with Belt Driven Table, YS-405B
  • Power supply 220V 50/60Hz 1.0kW
    Machine dimension (mm) 1480x730x1480
    Strapping specifications (mm) Minimum packing size: W150xH60 Standard frame size: W650xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤55
    PP strap (mm) Width 5/6, thickness 0.5-0.8

Automatic Low Table Strapper with Belt Driven Table, YS-405BL

  • Automatic Low Table Strapper with Belt Driven Table, YS-405BL
  • Power supply 220V 50/60Hz 1.0kW
    Machine dimension (mm) 1920x730x1600
    Strapping specifications (mm) Minimum packing size: W150xH60 Standard frame size: W650xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤55
    PP strap (mm) Width 5/6, thickness 0.5-0.8
